Outstanding tilth and excellent penetration
A simple and effective machine for conditions that require a tow behind direct drill.

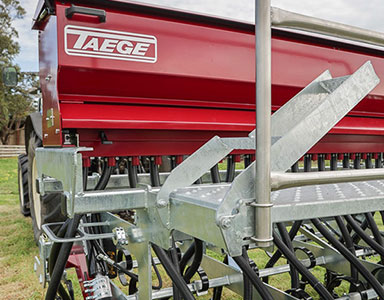

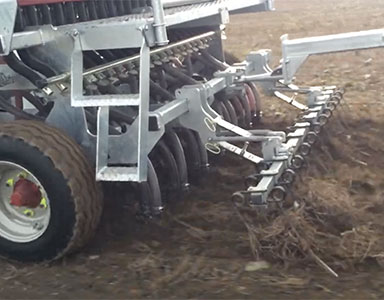

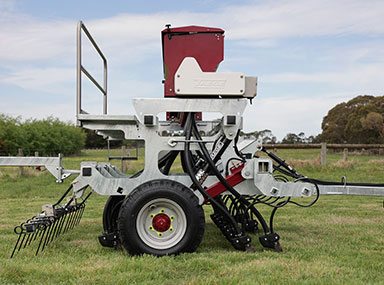

Follow contours accurately, with outstanding tilth and excellent penetration. The Taege SB300 is a practical machine that gives you the performance you need, while maintaining the features that matter to you.
At Taege, we don't compromise on performance.
All Taege machinery is cleverly designed to have very few moving parts - everything essential for supreme performance, nothing you don't need.
Simple construction and less moving parts means that over the lifetime of a Taege machine, down time and costs due to repairs and maintenance are kept to a minimum.
Sound thinking at the start means less trouble for you over the long haul.
Standard Features
- Galvanised frame
- Powder coated seed bin
- Tray for calibration
- Seed box agitator kit
- Electronic touch screen monitor
- 3.0m harrow set
- LED light kit with hazard panels and safety rails
- Calibration scales
- Rear draw bar
Optional Upgrades
- Small seed inserts with high baffles
- Sponge protectors (per bin)
- Broadcasting system
- M3 microgranular hopper (gravity fed)
- Rear draw bar extension (for towing with M3 hopper)
- Rear draw bar steep angle / Gully knuckle
- End tow kit
Key Benefits
- Excellent penetration
- Outstanding tilth
- Contour following
- Phasing Ram System
- Taege 'S' Tynes
- No scuffing
Specifications
| Model | UD300 | SB300 | DB300 | DB360 |
|---|---|---|---|---|
| Size | 3.0m Uni Drill | 3.0m Single Drill | 3.0m Double Drill | 3.6m Double Drill |
| Row spacing (mm) | 121 | 121 | 121 | 121 |
| Sowing width (mm) | 2888 | 2783 | 2783 | 3509 |
| Overall width (mm) | 3100 | 3100 | 3100 | 3700 |
| Overall height (mm) | 2000 | 2000 | 2000 | 2000 |
| Number of tynes | 23 | 23 | 23 | 29 |
| Number of tyne rows | 2 | 3.5 | 3.5 | 3.5 |
| Tyne row stagger (mm) | 565 | 590 | 590 | 590 |
| Seed box capacity (L) | 504 | 504 | 504 | 628 |
| Working speed (kph) | 2 - 14 | 2 - 14 | 2 - 14 | 2 - 14 |
| Tractor HP required | 65 | 85 | 85 | 100 |
| Approx. weight (kg) | 950 | 1500 | 1730 | 1950 |
