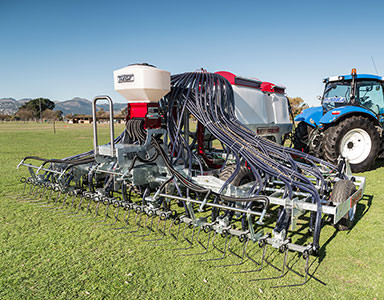

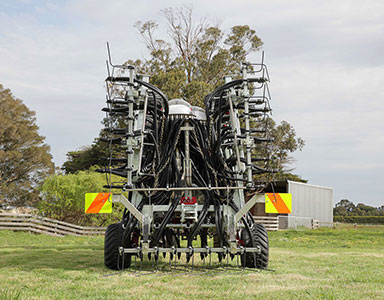

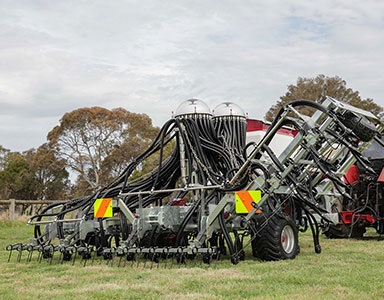

Performance rivalling larger European machinery
With large hydraulic wings and 6.0m working width, the AS600 delivers exceptional results.

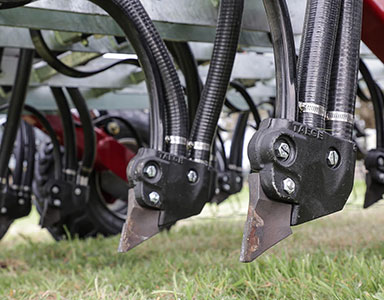

Contour following and trash clearance are maintained, and complimented with features such as heavy duty tyres and 2-point linkage drawbar. Legendary Taege ‘S’ tynes provide performance rivalling larger European machinery.

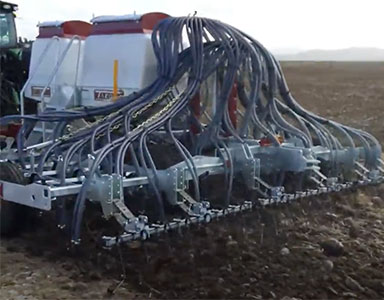

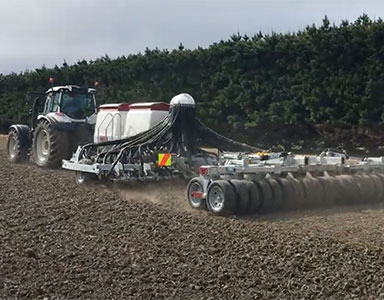

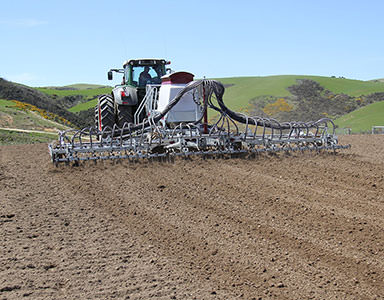

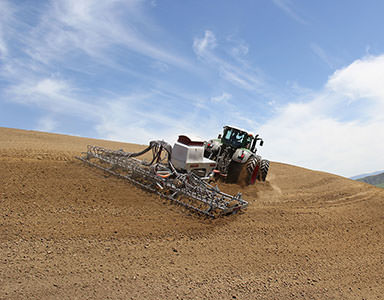

This machine follows ground contours with offset depth wheels, allowing for flex while maintaining stability and eliminating the formation of ground corrugations.
Experience all that a Taege Air Seeder has to offer.
All Taege machinery is cleverly designed to have very few moving parts - everything essential for supreme performance, nothing you don't need.
Simple construction and less moving parts means that over the lifetime of a Taege machine, down time and costs due to repairs and maintenance are kept to a minimum.
Sound thinking at the start means less trouble for you over the long haul.
Standard Features
- 29 outlet distributors
- Twin 850L high rise bins + retractable lids
- Small seed insert
- Standard, medium and high speed cassette
- Heavy duty tyres (400/600-15.5)
- Wings 10.0/75-15.3
- Hydraulic hose extension for rear implement
- Bolt on rear draw bar
- Electronic touch screen monitor
- 2-point linkage heavy duty draw bar
- 6.0m contour following Taege harrows
- LED light kit with hazard panels and safety rails
- Hydraulic folding
Optional Upgrades
- M3 hopper (air assist)
- Rear draw bar steep angle / Gully Knuckle
Key Benefits
- Contour following
- Hydraulically controlled lifting
- Adjustable front draw bar
- Simple construction
- Slot mounted wings
- Few moving parts
Specifications
| Model | AS310 | AS360 | AS480 | AS600 |
|---|---|---|---|---|
| Size | 3.1m | 3.6m | 4.8m | 6.0m |
| Row spacing (mm) | 121 | 121 | 121 | 121 |
| Sowing width (mm) | 2980 | 3509 | 4719 | 5856 |
| Overall width (mm) | 3025 | 3524 | 4855 | 6300 |
| Transport width (mm) | 3100 | 3600 | 3000 | 3000 |
| Number of drops | 25 | 29 | 39 | 49 |
| Number of tyne rows | 4.5 | 4.5 | 4.5 | 4.5 |
| Tyne row stagger (mm) | 570 | 570 | 570 | 590 |
| Seed box capacity (L) | 850 | 850 | 850 | 1400 |
| Fert box capacity (L) | 850 | 850 | 850 | 1400 |
| Working speed (kph) | 2 - 14 | 2 - 14 | 2 - 14 | 2 - 14 |
| Tractor HP required | 100 | 100 | 120 | 140 |
| Approx weight (kg) | 2000 | 2000 | 3300 | 4300 |
| Hydraulic fan | 25L per min | 25L per min | 25L per min | 30L per min |
