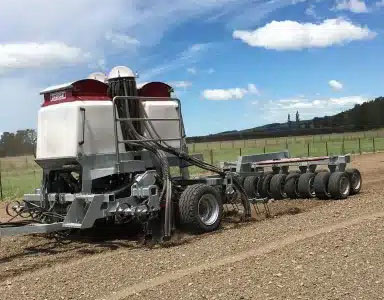

Envious contour following and trash clearance makes this 3.6m seeder a true investment.
All Taege machinery is cleverly designed to have very few moving parts - everything essential for supreme performance, nothing you don't need.
Simple construction and less moving parts means that over the lifetime of a Taege machine, down time and costs due to repairs and maintenance are kept to a minimum.
Sound thinking at the start means less trouble for you over the long haul.
Model | AS310 | AS360 | AS480 | AS600 |
---|---|---|---|---|
Size | 3.1m | 3.6m | 4.8m | 6.0m |
Row spacing (mm) | 121 | 121 | 121 | 121 |
Sowing width (mm) | 2980 | 3509 | 4719 | 5856 |
Overall width (mm) | 3025 | 3524 | 4855 | 6300 |
Transport width (mm) | 3100 | 3600 | 3000 | 3000 |
Number of drops | 25 | 29 | 39 | 49 |
Number of tyne rows | 4.5 | 4.5 | 4.5 | 4.5 |
Tyne row stagger (mm) | 570 | 570 | 570 | 590 |
Seed box capacity (L) | 850 | 850 | 850 | 1400 |
Fert box capacity (L) | 850 | 850 | 850 | 1400 |
Working speed (kph) | 2 - 14 | 2 - 14 | 2 - 14 | 2 - 14 |
Tractor HP required | 100 | 100 | 120 | 140 |
Approx weight (kg) | 2000 | 2000 | 3300 | 4300 |
Hydraulic fan | 25L per min | 25L per min | 25L per min | 30L per min |
