Fully Upgradable

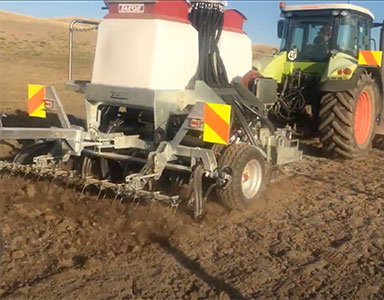

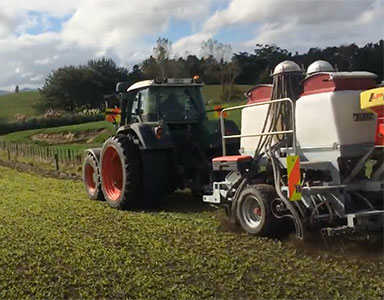

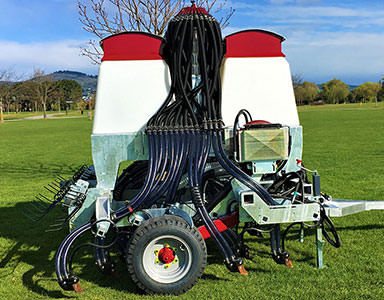

This machine is at home on small undulating properties, providing a practical and compact solution for smaller operations. Navigate through tricky situations and maintain accuracy on hills with this 3.1m implement. For those of you with smaller HP tractors or simply after a no-frills unit.
All Taege machinery is cleverly designed to have very few moving parts - everything essential for supreme performance, nothing you don't need.
Simple construction and less moving parts means that over the lifetime of a Taege machine, down time and costs due to repairs and maintenance are kept to a minimum.
Sound thinking at the start means less trouble for you over the long haul.
Standard Features
- 29 outlet distributors
- Twin 850L high rise bins with retractable lids
- Small seed insert
- Standard and high speed cassette
- Heavy duty tyres (13.0/55-46)
- Bolt on rear draw bar
- Electronic touch screen monitor
- 3.1m contour following Taege harrows
- Road transport LED light kit
Optional Upgrades
- M3 hopper (air assist)
- Rear draw bar steep angle / Gully Knuckle
- 2-point linkage heavy duty draw bar
Key Benefits
- Simple construction
- Drill around corners
- Fully upgradable
- Unique Live Tyne Angle
- Contour following
- Phasing Ram system
Specifications
| Model | AS310 | AS360 | AS480 | AS600 |
|---|---|---|---|---|
| Size | 3.1m | 3.6m | 4.8m | 6.0m |
| Row spacing (mm) | 121 | 121 | 121 | 121 |
| Sowing width (mm) | 2980 | 3509 | 4719 | 5856 |
| Overall width (mm) | 3025 | 3524 | 4855 | 6300 |
| Transport width (mm) | 3100 | 3600 | 3000 | 3000 |
| Number of drops | 25 | 29 | 39 | 49 |
| Number of tyne rows | 4.5 | 4.5 | 4.5 | 4.5 |
| Tyne row stagger (mm) | 570 | 570 | 570 | 590 |
| Seed box capacity (L) | 850 | 850 | 850 | 1400 |
| Fert box capacity (L) | 850 | 850 | 850 | 1400 |
| Working speed (kph) | 2 - 14 | 2 - 14 | 2 - 14 | 2 - 14 |
| Tractor HP required | 100 | 100 | 120 | 140 |
| Approx weight (kg) | 2000 | 2000 | 3300 | 4300 |
| Hydraulic fan | 25L per min | 25L per min | 25L per min | 30L per min |
